Product Details
＋

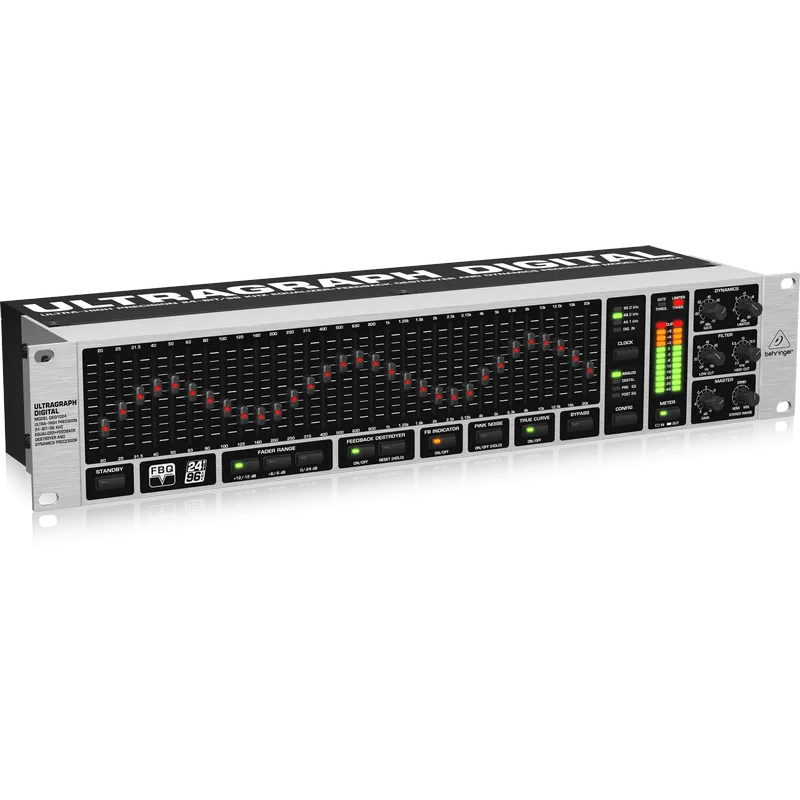

Beautifully sculpted, feedback-free sound can be yours, when the ULTRAGRAPH DIGITAL DEQ1024 has a place in your rack. It€™s a 31-band equalizer, a Feedback Destroyer and Dynamics processor €“ all in one. Most importantly, state-of-the-art 24/48- bit DSP and ultra high-resolution 24-bit/96 kHz A/D - D/A converters deliver the ultimate in sonic resolution.
Features
- Ultra-high resolution 24-bit/96 kHz processor featuring EQ, RTA and dynamic processing for PA and mastering applications
- Unique "True Curve" Function€”fader settings reflect actual frequency response
- Revolutionary FBQ detection system instantly reveals critical frequencies and can also be used as Audio Analyzer
- Automatic and ultra-fast Feedback Destroyer plus feedback indication via fader LEDs
- "Inaudible" Noise Gate/Peak Limiter function plus amazing Stereo Imager for spatial enhancement
Tech Specs
| Filter Type | Graphic |
| Number of Channels | 2 |
| Inputs | 2 x XLR (analog) 1 x XLR AES/EBU 1 x RCA coaxial S/PDIF |
| Outputs | 2 x XLR (analog) 1 x XLR AES/EBU 1 x RCA coaxial S/PDIF |
| Maximum Input Level | 12dBu or 22dBu, switchable |
| Frequency Bands | 31 x 2, ISO spacing |
| Bandwidth | 1/3 octave |
| Range (Boost/Cut) | /-6dB, /-12dB or 0/-24dB, switchable |
| Maximum Output Level | 12dBu or 22dBu, switchable |
| Frequency Response | 15Hz to 35kHz, /-3dB |
| Dynamic Range | Not specified by manufacturer |
| Noisew | SNR: 104dBu, A-weighted (22Hz to 22kHz) |
| Dimensions (WxDxH) | 19" x 5 5/16" x 3 1/2" |
| Weight | 5 lbs (shipping) |
