The ultimate setup of a traditional Bowers & Wilkins sound system, for decades, has been the definition of high-fidelity sound. Now, the uncompromising Bowers & Wilkins audio heritage is married with 21st- entury streaming convenience due to the new Formation Audio. It finally enables high-quality wireless streaming to your existing passive system or from existing passive components – CD player, turntable, or other pieces – to wireless Formation speakers, anywhere in the home. Our analog-to-digital converter ensures there is no lag or breaks in sound, even between rooms, while 96/24-bit streaming maintains legendary Bowers & Wilkins sound resolution. Just think – existing passive sound system quality, now synced to stream anywhere, wirelessly. It is why Formation by Bowers & Wilkins is the Highest Form of Sound™.
TECHNICAL SPECIFICATIONS
Model - Formation Audio
Description - Wireless Audio Hub
Technical features
Apple® AirPlay 2® technology
Spotify® Connect
Roon Ready
Bluetooth In
High-performance analog-to-digital converter (ADC)
High-performance digital-to-analog converter (DAC)
Input voltage - 100V – 240V – 50/60Hz
Power consumption - Below 6 Watts (Sleep)*

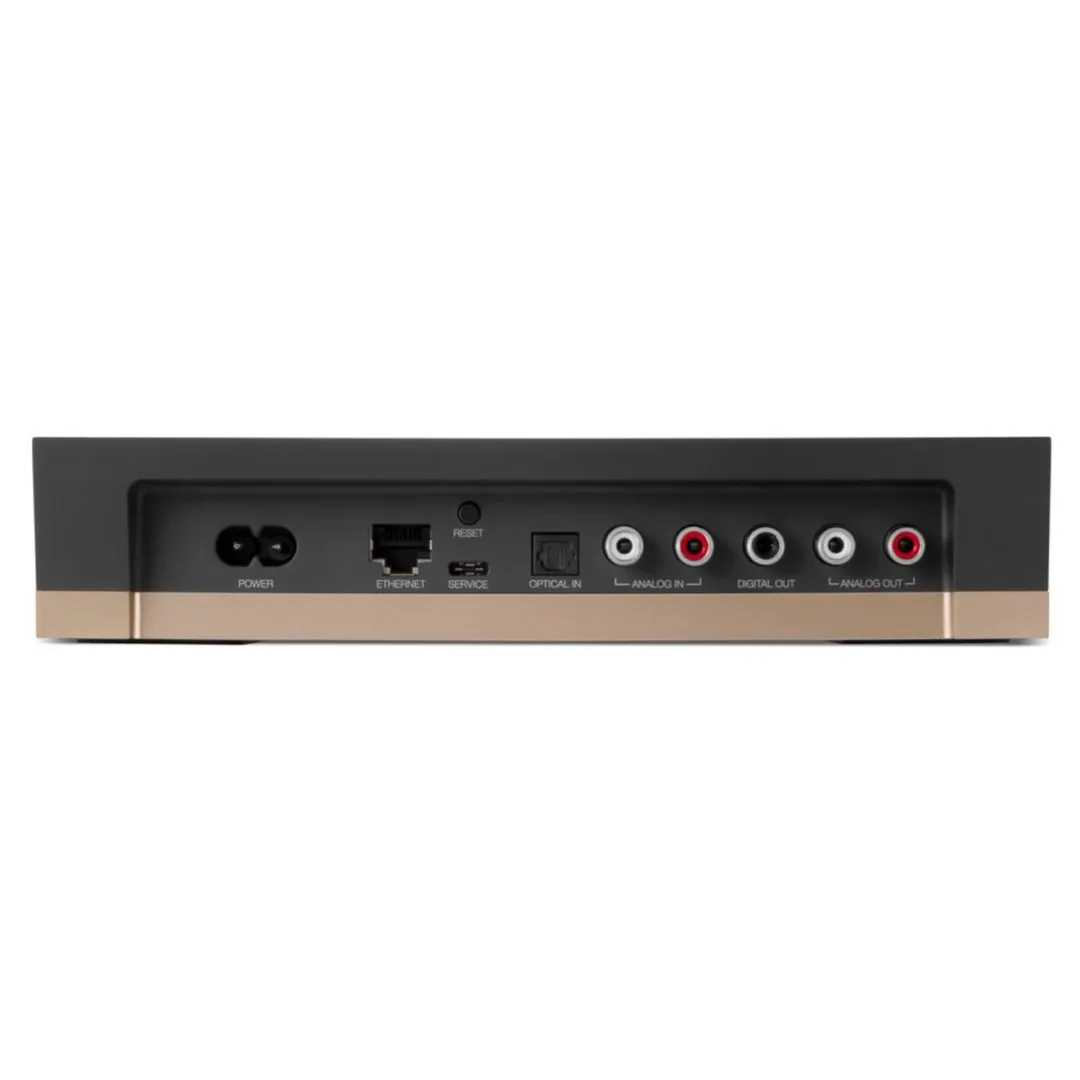

Connections
Digital audio in (Toslink)
Analog audio in (2 x RCA)
Digital audio out (1 x RCA)
Analog audio out (2 x RCA)
Network (RJ45 Ethernet or WiFi)
USB – service only
Bluetooth
Bluetooth® v4.1, Class 2
AptX HD
AAC
SBC
Dimensions
Height: 44mm (1.7 in)
Width: 215mm (8.5 in)
Depth: 263mm (10.4 in)
Weight: 1.0kg (2.2lb)
AirPlay 2 compatibility
iPhone, iPad, and iPod touch with iOS 11.4 or later, Apple TV 4K or Apple TV (4th Generation) with tv OS 11.4 or later, Mac or PC with iTunes 12.8 or later.
*Formation devices have multiple radios and therefore are compliant for the ERP requirements for a HiNA device
