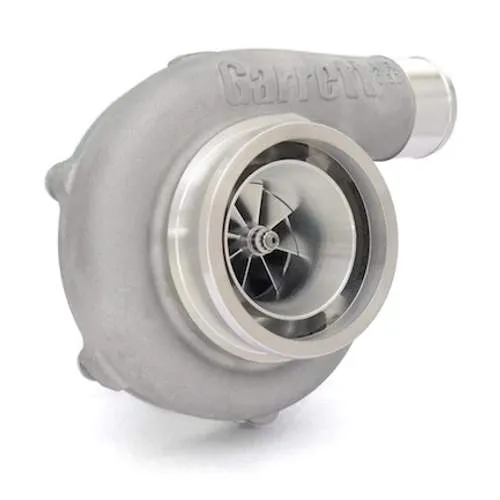

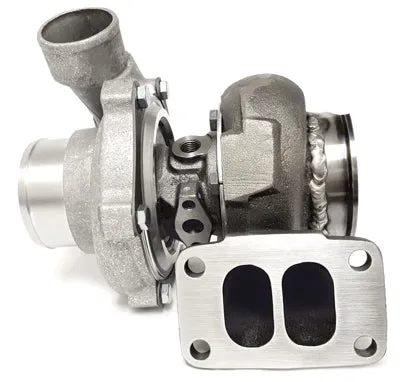

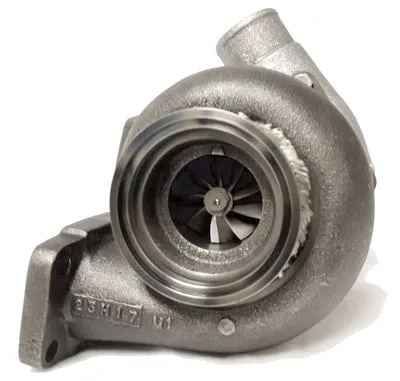

Name: GEN2 Garrett GTX3071R Turbo w/ Divided .82 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-783
SKU: 1435505

Product Details ＋

PRODUCT DESCRIPTION:

Garrett GEN2 GTX3071R dual ball bearing turbocharger, including T3 Divided Inlet and 3 Inch V-Band Outlet .82 A/R Turbine Housing (ATP-HSG-080). Advanced GEN2 billet compressor wheel capable of 650HP!

PRODUCT FEATURES:

Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel

Forged billet aluminum compressor wheel

Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 54mm

Compressor Wheel Exducer: 71mm

Compressor Wheel Trim: 58

Compressor Housing A/R: 0.60

Turbine Wheel Inducer: 60mm

Turbine Wheel Exducer: 55mm

Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor:

Oil drain flange:

Oil drain gasket:

8mm x 1.25 (thread pitch) Stud:

8mm x 1.25 (thread pitch) Locking Head Nut:

T3 Divided Inlet Flange (for Turbo Manifold):

T3 Divided Inlet Gasket:

3" GT V-band Outlet Flange w/81mm protruded lip (for Downpipe):

Matching V-Band Outlet Clamp:

NOTE: Alternate coolant and oil fittings and flanges are available.

COMPRESSOR & TURBINE MAPS:

GEN2 Garrett GTX3071R Turbo w/ Divided .82 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-783
