Name: JL Audio MediaMaster 105 Weatherproof Hidden Source Unit
SKU: 815525

Product Details ＋

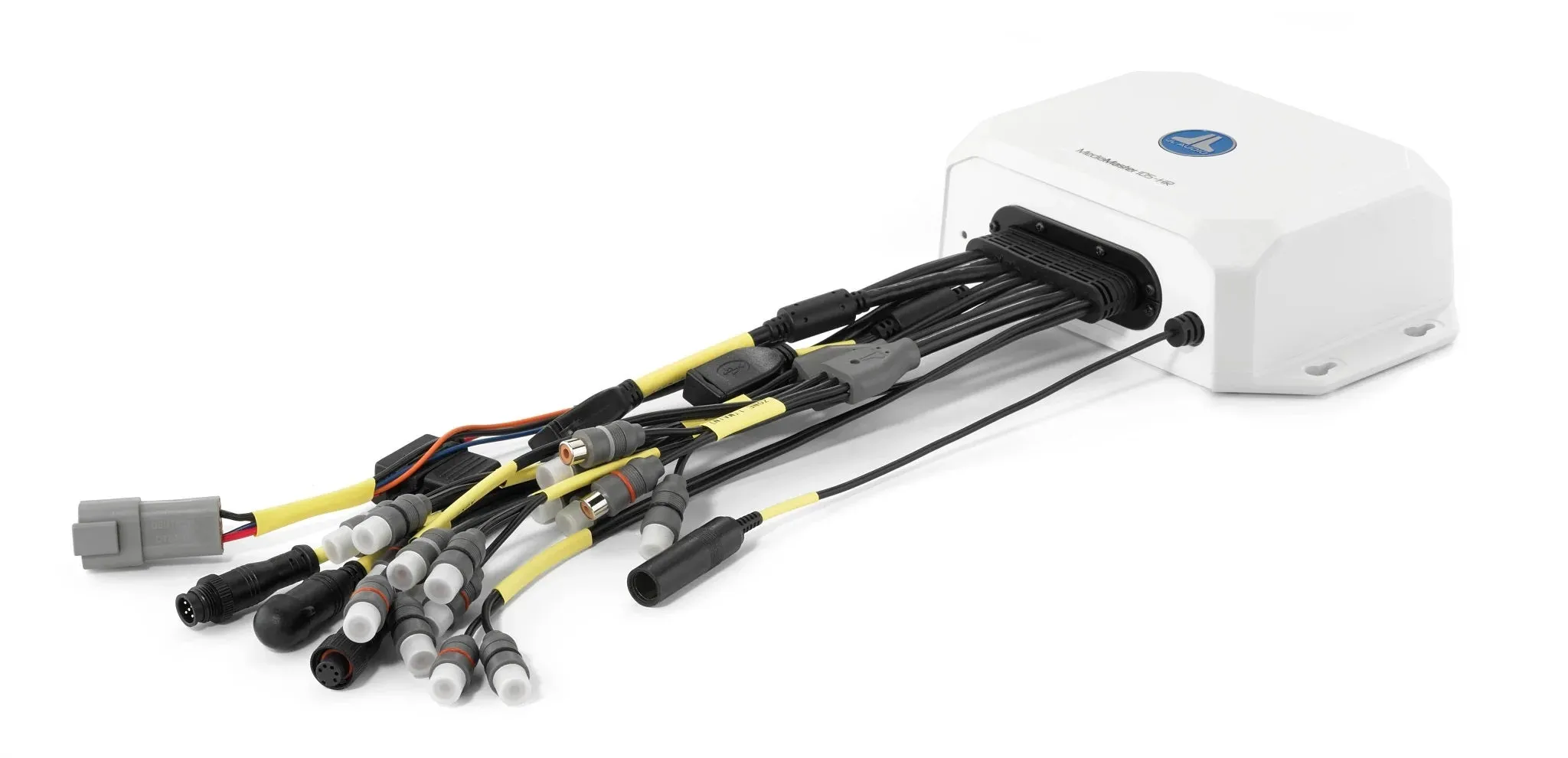

JL Audio MediaMaster 105 Weatherproof Hidden Source Unit

Jl Audio MM105-HR Premium, Hidden Marine Source Unit

Model: MM105-HR

12-channels of audiophile quality, 4V RMS preamp level outputs

NMEA 2000® MFD Control - Use your compatible Multi-Function Display from Garmin, Simrad, Lowrance or Raymarine (refer to MFD manufacturer for compatibility info)

MMR-40 NMEA 2000® Network Controller (sold separately) - Full-function, water-resistant (IP66 rated) controller with full-color LCD display

Four separate audio zones, each with independent feature/control options:

Available Digital HD Radio™ (North America) and DAB Radio (Europe) tuners for the best in broadcast sound quality and selection

Global AM/FM radio tuner with RDS (Radio Data System), to display extended FM program info, where available

SiriusXM-Ready™ (tuner, antenna and subscription sold separately)

SiriusXM-Ready™ (tuner, antenna and subscription sold separately)

Bluetooth® audio streaming with Qualcomm® aptX™ for maximum audio fidelity with compatible devices

USB1 and USB2 direct-digital connections access music files on your compatible iPhone® or USB storage device; includes 1A and 500mA charging outputs

AUX1 and AUX2 inputs accepts analog audio signals from a variety of audio sources

Certified NMEA 2000® Connectivity - MFD (Multi-Function Display) vessel control functionality using applicable network cables and connectors (sold separately).

Engineered to operate behind the scenes as a hideaway receiver, the MediaMaster® 105-HR includes all features of the MM105, minus the LCD display and physical controls. This full-featured, concealed source unit delivers top-flight sound performance and advanced audio features specifically designed for marine applications. Outfitted with NMEA-2000® connectivity, the MM105-HR can be controlled by your Garmin, Lowrance, Raymarine or Simrad Multi-Function Display (MFD) or MMR-40 NMEA 2000® Network Controller (sold separately).

Because sound quality is our top priority, the MM105-HR is not equipped with an internal amplifier designed to drive loudspeakers directly. Instead, it offers twelve channels of audiophile-quality, preamp level outputs to deliver crystal-clear signals to high-quality marine amplifiers. These are deployed via four configurable, nameable audio zones, each with its own set of independent control options, making the MM105-HR adaptable to a wide range of system types. On-the-fly, level controls make adjusting each or all audio zones a breeze, while a useful volume limit feature ensures that nobody gets blasted inadvertently. All zones feature our Zero-Clipping audio circuit design, with self-limiting tone controls to keep the audio clean at high listening levels, reducing the likelihood of speaker damage.

Specifications

General Specifications

Input Operating Voltage
10 - 15.9 VDC

Standby Current Draw
120 mA

Operating Current Draw
1.5 A

Recommended Fuse Value
5 A

Remote Turn-on Capacity
500 mA (max)

Operating Temperature Range
-4 F to 158 F (-20 C to 70 C)

Output Channels
One stereo pair and mono subwoofer RCA plugs per zone

Output Zones
Relative, Absolute, Fixed or Off

Maximum Output Voltage
4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed)

Tuner

FM Tuner with RDS
87.5 MHz to 107.9 MHz (0.2 MHz step)
