Product Details
＋
PRODUCT DESCRIPTION:
Coolant - Water Options (*Please call for assistance*)
Oil feed fitting:
Oil drain flange:
Oil drain gasket:

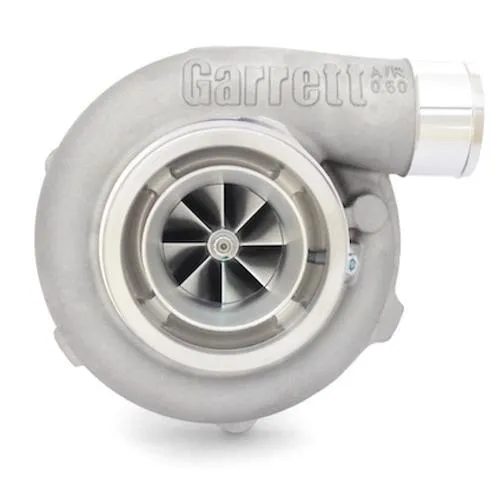

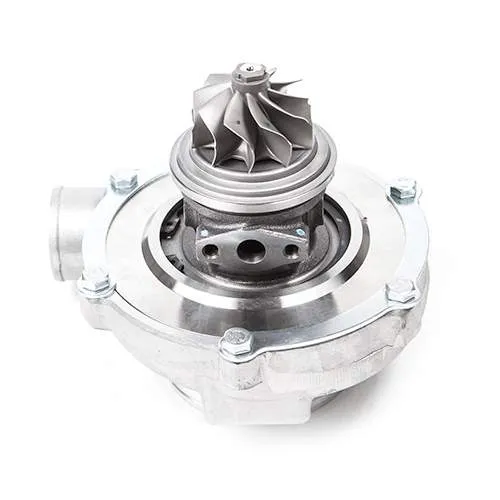

- Garrett GEN2 GTX3076R dual ball bearing SuperCore (P/N: 851154-5001S) with ultra high flow Gen2 compressor wheel. NO TURBINE HOUSING (Supercore). Advanced GEN2 billet compressor wheel capable of 750HP!
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 58 mm
- Compressor Wheel Exducer: 76 mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60 mm
- Turbine Wheel Exducer: 55 mm
- Turbine Wheel Trim: 84
INSTALLATION HARDWARE:
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR & TURBINE MAPS:
